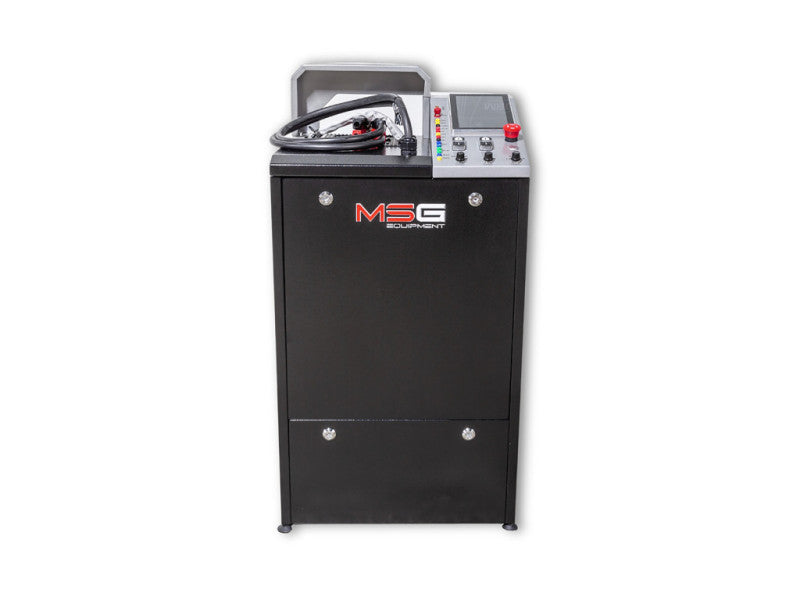

MS002A Alternator, Starter and Voltage Regulator Test Bench

The MSG Equipment MS002A brings alternator, starter and voltage regulator testing together in one workshop bench. It checks passenger and commercial vehicle units, displaying current and voltage as real-time oscillograms to help locate faults.

Specifications

• Rated unit voltage: 12 V and 24 V.
• Alternator load: 200 A at 12 V; 100 A at 24 V.
• Starter testing: up to 6 kW in no-load mode.
• Supply: 400 V three-phase electrical network; power consumption: 5.5 kW.
• Drive speed: 0–3600 rpm with smooth adjustment.
• Dimensions (W × D × H): 0.55 × 0.45 × 1.05 m. Weight: 112 kg.

Compatibility & Features

Manual and automatic diagnostics, alternator and voltage regulator databases, a 9-inch touchscreen, and diagnostic result saving and printing support workshop testing. Compatible applications include 12 V Stop-Start and Mazda I-ELOOP alternators. Voltage regulators can be tested separately. Two 12 V batteries with a capacity of 45–60 Ah and special connection cables are not included. This model does not test 48 V units.

Manufacturer: MSG Equipment
Model: MS002A

Manufacturer information and downloads
