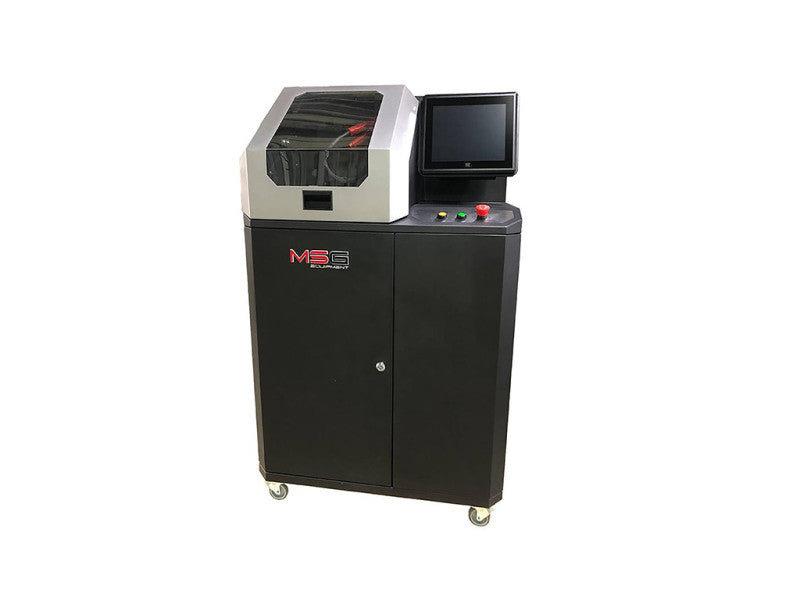

MS005A Alternator and Starter Test Bench for 12 V, 24 V and 48 V

The MSG Equipment MS005A supports workshop diagnostics of conventional alternators, starters and 48 V belt-driven starter-generators used in mild hybrid vehicles. Real-time current and voltage oscillograms help technicians assess unit performance.

Specifications

• Alternator load: 300 A at 12 V; 150 A at 24 V; 50 A at 48 V.
• Starter testing: 12/24 V units up to 11 kW in no-load mode.
• Supply: 400 V three-phase electrical network; power consumption: 7.5 kW.
• Drive speed: 0–3000 rpm.
• Dimensions (W × D × H): 0.9 × 0.655 × 1.43 m. Weight: 240 kg.

Compatibility & Features

Features include manual and automatic test modes, an alternator database with connection diagrams, customizable automatic test scripts, report saving and printing, a thermal imaging camera and a 12-inch touchscreen. Supported applications include 12 V Stop-Start, Mazda I-ELOOP and CAN-controlled 48 V starter-generators. Wi-Fi and Ethernet connectivity enable free automatic software updates. Two 12 V batteries of at least 45 Ah, special connection cables and an external printer are supplied separately. Standalone voltage regulator testing is not supported.

Manufacturer: MSG Equipment
Model: MS005A
