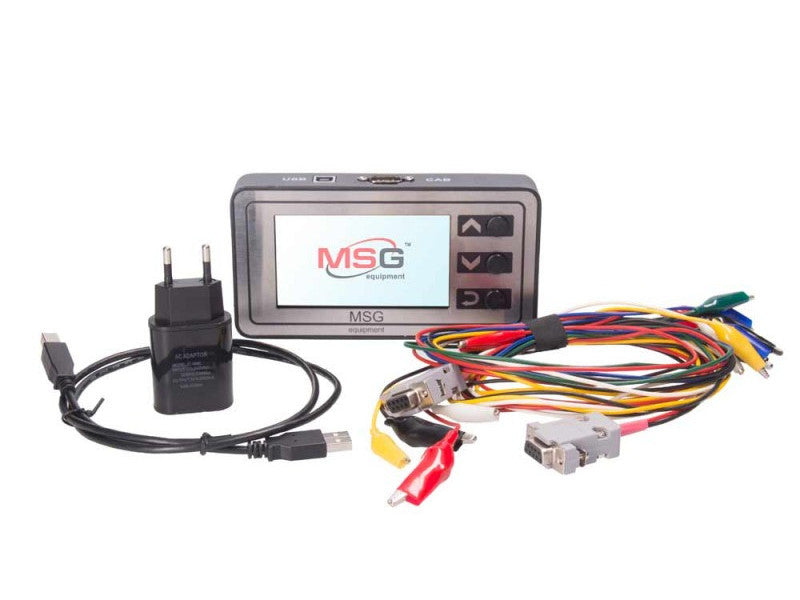

MS013 Portable 12 V Alternator and Voltage Regulator Tester

The MSG Equipment MS013 checks 12 V alternators on the vehicle and tests 12 V voltage regulators separately. It helps workshops decide whether an alternator needs removal for repair or replacement.

Specifications

• Rated voltage of diagnosed units: 12 V.
• Supported alternator and regulator types: C JAPAN, C KOREA, COM (LIN/BSS), Lamp, P/D, RLO and SIG.
• Power source: 12 V battery or USB; listed mains adapter supply: 230 V AC to 5 V/2 A DC.
• Dimensions (W × D × H): 0.157 × 0.026 × 0.085 m. Weight: 1.13 kg.

Compatibility & Features

The tester can also operate with a test bench that supplies the alternator drive and load. Additional functions include PWM signal generation and a simple single-channel oscilloscope. Touchscreen controls, a compact format, short-circuit protection during regulator testing and free software updates support everyday use. This model does not test 24 V units. The manufacturer also identifies it as MS013 COM.

Manufacturer: MSG Equipment
Model: MS013
