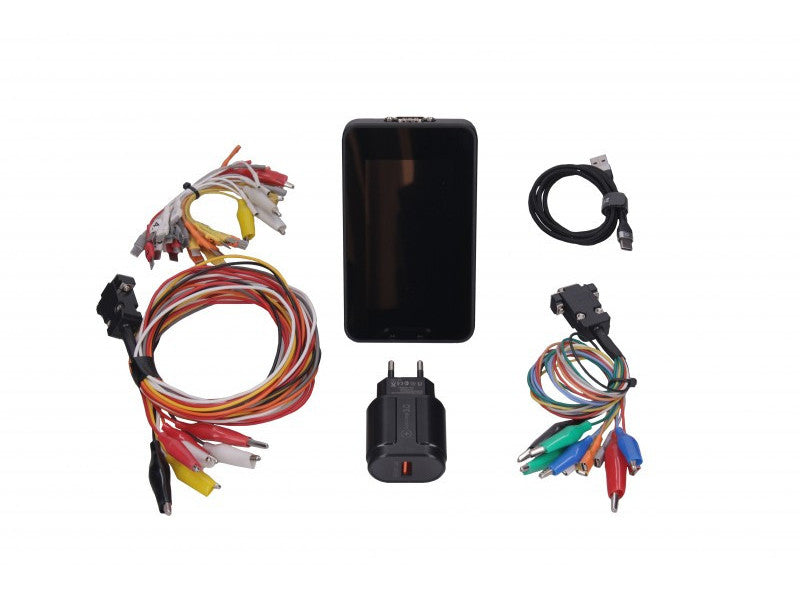

MS016 Alternator, Voltage Regulator and Starter Diagnostic Tester

The MSG Equipment MS016 combines on-vehicle alternator checks, standalone voltage regulator testing and LIN-bus analysis in a handheld unit. Starter diagnostics are available with the separately purchased MS-33503A cable.

Specifications

• Rated voltage of diagnosed units: 12 V and 24 V.
• Supply voltage range: 12–48 V. Power source: 12/24 V battery or USB QC 2.0.
• Engine speed simulation: 0–6000 rpm.
• Dimensions (W × D × H): 0.085 × 0.018 × 0.157 m. Weight: 0.58 kg.

Compatibility & Features

The touchscreen tester supports 12/24 V alternators and 12 V Valeo I-StARS Stop-Start units, either on the vehicle or on a bench providing drive and load. A voltage regulator database assists connections. The LIN analyzer reads and saves vehicle bus data. Short-circuit protection is provided during regulator tests, and software updates are free. For starter testing, the vehicle or test bench must provide secure mounting and power. The MS-33503A cable is not included.

Manufacturer: MSG Equipment
Model: MS016
