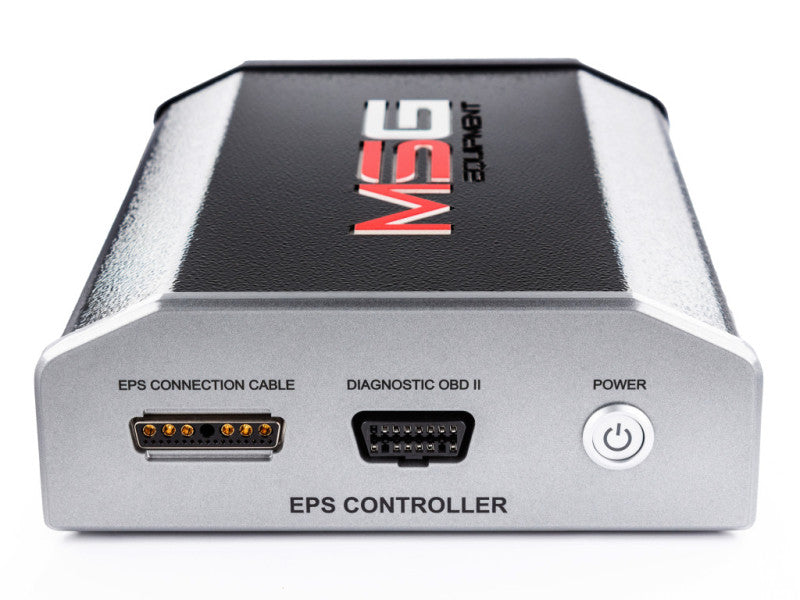

MS561 PRO Electric Power Steering Diagnostic Tester

MS561 PRO Electric Power Steering Diagnostic Tester

$14,000.00
$14,000.00

SKU: AKT-MSG-MS561-PRO

In Stock: 2 units

Some OEM, refurbished, or aftermarket keys may not have logos, but all products are guaranteed to work.
Compare Ask a question Share
MSG EQUIPMENT · BUILD YOUR KIT

Choose your EPS equipment & software

Choose your items, review them in the shopping cart, then check out together in one order.

1Choose your equipment

MS561 PRO is the base tester. Add MS-39000 to work with FlexRay programs.

Already have the equipment?

Mark what you own so you only pay for the missing items.

2Select your FlexRay programs

Choose the vehicle brands and platforms you service. Every program requires both MS561 PRO and MS-39000.

3Add training Optional
Product description

The MSG Equipment MS561 PRO runs EPS steering racks, columns and EHPS pumps on the workbench by simulating vehicle operating signals. Technicians can assess current consumption, live data, DTCs and control-unit identification without reinstalling the unit in a vehicle.

Diagnostic capabilities

  • Supports CAN, CAN-FD, two independent CAN buses, FlexRay and PWM-controlled units.
  • Tests torque sensors separately from the steering rack.
  • OEM-number search, connector pinouts and dynamic CAN indication assist setup.
  • Special functions include Flash programming, parameter loading, EEPROM reading/writing, VIN changes and virginizing where supported by the specific unit.
  • Regular software updates expand diagnostic coverage.

Specifications

  • Supply: 230 V single-phase; power consumption: 2 kW.
  • Output current: up to 100 A.
  • PC connection: USB/Bluetooth; diagnostic scanner connection: OBDII.
  • Protection: short circuit, overload and overheating.
  • Dimensions (W × D × H): 0.255 × 0.355 × 0.093 m; weight: 8 kg.

Build your EPS system

FlexRay applications require the separately purchased MS-39000 module and the relevant FR software. Select the required equipment and programs in the configurator. MS561 PRO, MS-39000 and software are priced separately.
