OBDStar - Keymaster DP Plus Programming Machine / Full Immobilizer + Diagnostics & Special Functions - Package C

OBDStar - Keymaster DP Plus Programming Machine is android-powered diagnostic tool, built on OBDSTAR technology, supports full-system vehicle diagnostics via OBD connectors and mobile terminals. It integrates internet-based features like maintenance database, remote assistance, and one key upgrade.

Full Immobilizer C Package

• Immobilizer: Key programming, remote programming, EEPROM, renew key.

• Mileage Correction

• Diagnostics

• Special Functions: Oil reset, ABS, battery matching, ECU programming, EPB, throttle programming, airbag reset, TPMS, steering angle reset, OBDII, DPF, injector coding, suspension matching, gear learning, CVT learning, EEPROM, key renewing, ECU cloning.

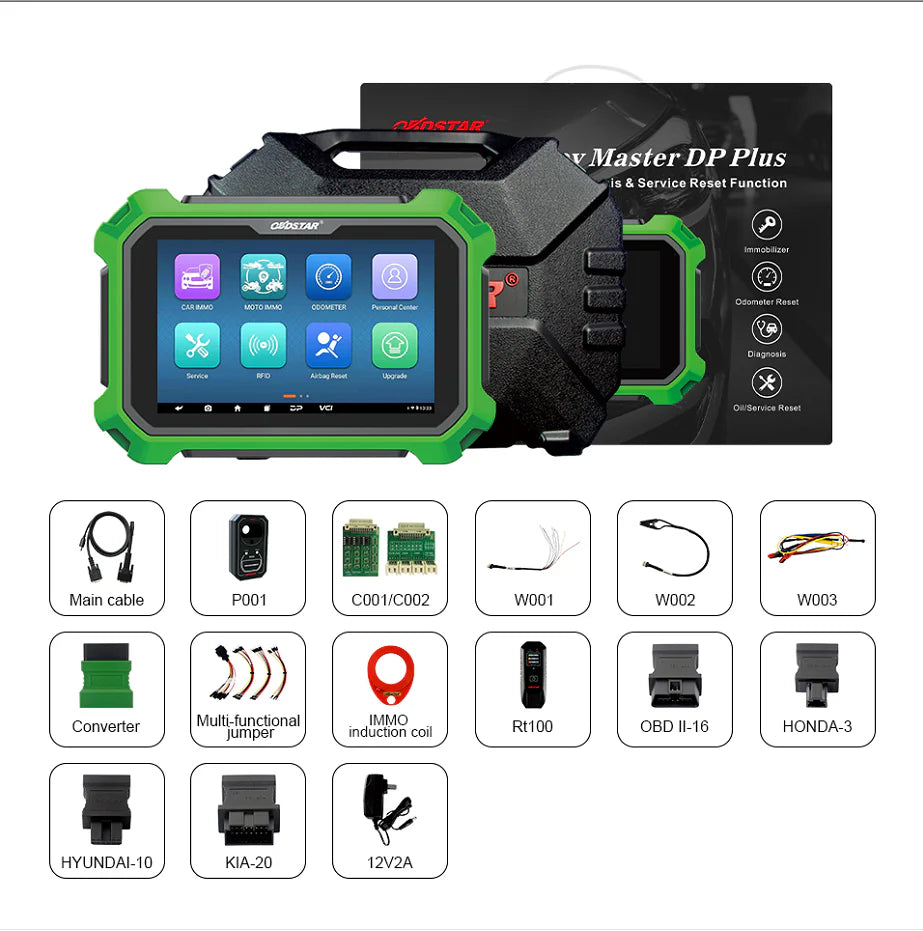

• Adapters: P001 programmer (EEPROM, RFID, Key Renew), C001/C002 circuit boards, W001/W002/W003 data cables, Toyota smart key emulator.

• Additional Tools: Ignition coil, remote tester.



Note: Use a 5G hotspot connection. For iPhone hotspots, enable "Maximize Compatibility."

Hardware Features

• Built-in VCI box.

• 8-inch capacitive touchscreen (1280x800).

• Charges via OBD interface.

• Silicone case with back bracket for steering wheel or tabletop use.

• 4 Toyota simulation keys (5th coming soon).

• P001 programmer (EEPROM, RFID, Key Renew).

• SOP 8PIN EEPROM reading clip.

• C001/C002 circuit boards for chip data read/write.

• IMMO induction coil for key coil diagnostics.

• ECU reading wiring harness for cloning and switch activation.

Software Features

• Immobilizer: EEPROM, key renew, key programming, remote programming.

• Full-system diagnostics and special functions.

• Maintenance Database, remote assistance, One Key Upgrade.

Technical Specifications

• OS: Android 5.1.1

• CPU: Exynos4418 Dual Core ARM Cortex A9 1.4GHz

• Battery: 3700mA rechargeable lithium polymer

• Memory: 1GB RAM, 32GB storage (supports 32GB Micro SD)

• Display: 8.0-inch LCD, 1280x800

• Camera: 5MP rear

• Connectivity: Wi-Fi

• Operating Temp: -10°C to 55°C (14°F to 131°F)

• Storage Temp: -20°C to 70°C (-4°F to 158°F)

• Weight: ~1.0 kg

• Dimensions: 254mm x 174mm x 35mm



Package Feature Comparison Chart
