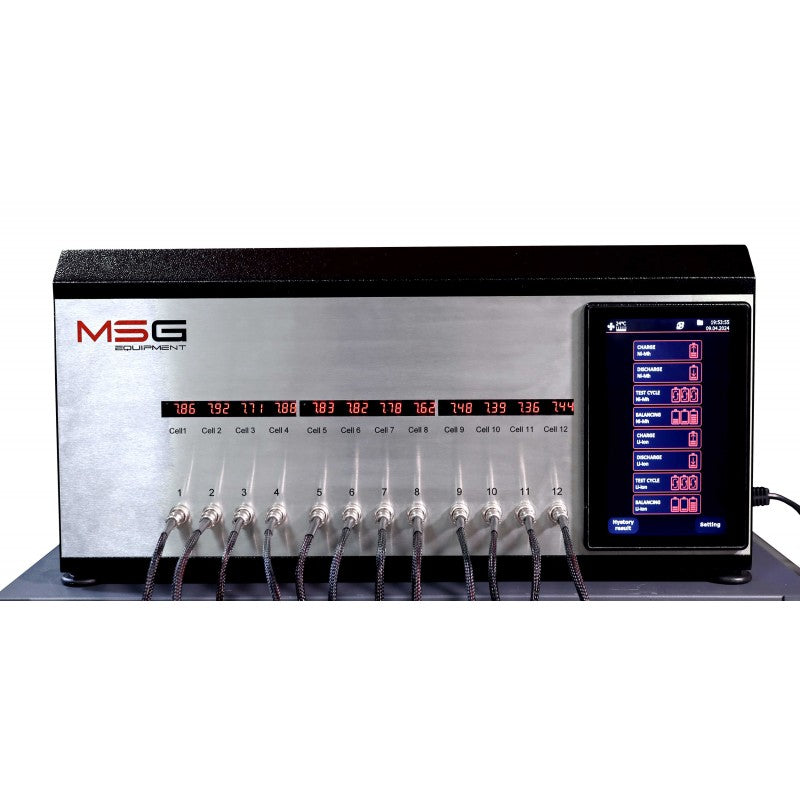

Tester for diagnostics of battery hybrid and electric vehicles - MS800A

The MS800А tester is suited for diagnosing high-voltage nickel-metal hydride (Ni-Mh) and lithium-ion (Li-ion) batteries in hybrid and electric vehicles. The tester provides simultaneous testing of 12 battery modules.

Specifications:

• The MS800A tester is used during the repair of high-voltage batteries in hybrid and electric vehicles. The tester can determine the capacity of nickel-metal hydride (Ni-Mh) and lithium-ion (Li-ion) batteries of various types: NMC, NCA, LFP. The battery module diagnostic (balancing) process occurs automatically. The tester incorporates protective systems to prevent battery module damage during diagnostics.

Compatibility & Programming:

More info

Application:

MS800A stores all measured data during the battery module diagnostic (balancing) process in its memory. These data can then be reviewed and analyzed on a PC using the TesterLogReader software, which it is possible to download and use for free.

Capabilities of the tester MS800:

• Diagnoses high voltage battery modules, determining their capacity.

• Charges sequentially connected cells of batteries that are unbalanced over time.

• Prepares the battery for installation on the car by balancing all modules by voltage.

• Prepares modules for storage, charging them to a certain level.

Advantages: • 12 independent, galvanically isolated, battery module test (balancing) channels (Ni-Mh or Li-Ion). • Automatic operating mode. • Battery module protection against: - overcharging/discharge; - overheating; - incorrect connection (wrong polarity). • Saving diagnostic results. • Convenient viewing and analysis of diagnostic results. • Management and control of the diagnostic process through a touchscreen. • Free software update.

Data sheet

Cross Reference / Legacy Part Numbers: MSG800A

Cross Reference / Legacy Part Numbers:MSG800A
