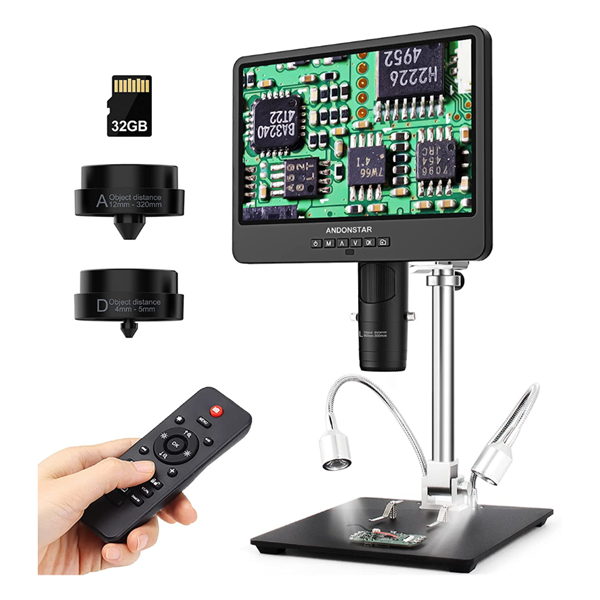

Andonstar AD246S-M/AD249S-M 3 lenses 10/7 in LCD HDMI Digital Microscope

Regular price $210.00
Sale price $210.00 Regular price

SKU: AKT-ADS-246S,

In Stock: 0 units

Product description

1. Tri-lens with a wide magnification range(60-240x,18-720x, 1560-2040x) make the microscope multifunctional: With this digital microscope, you can study lots of specimens such as rocks, plants, insects, precious stones, and coins, or do electronic work like repairing or making circuit boards.

2. Great image performance: with many years devoted to this industry, we have worked the sensor, chip, screen, and lens not only with high quality but also coordinated with each other very well. All of them together provide excellent image quality. The built-in rotatable monitor design ensures an easy and comfortable observation for all users including eyeglass wearers from all angles. 2880*2160 video resolution and picture resolution reaches 24M 5600*4200(with interpolation).

3. The main bracket is 30cm high, providing a big working space. The boom arm is allowed to adjust vertically and horizontally. In this case, even though the circuit board is big, the microscope is still able to catch images of every part of the board. A secondary bracket allows users to adjust the height and magnifications more precisely which is very useful especially when components are tiny.

4. Multifunctional accessories: remote–easier to control the microscope without touching the monitor(which would cause shaking to the image) and realize more functions. dimmer cable–to adjust illumination; slide holder with clips–movable, comes with bottom lights; tweezers&bug box–to place and save different specimen

5.  Multiple outputs(Optional): HDMI to a monitor,(When exported to an HDMI monitor, AD246S-M supports display on both the HDMI monitor and the built-in microscope monitor. But AD249S-M only presents images on an HDMI monitor. Please choose carefully if this function matters to you.) USB to a computer or simply use a memory card to save all images you capture. The Windows software offers image development and measurement tools, as well as advanced compositing features such as “sharpness” and “edge detect”.

 SPECIFICATIONS


246S-M 249S-M
Magnifi
cations
Lens A 18-720 18-720
focus rane 12-320mm 12-320mm
Lens D 1800-2040 1800-2040
focus rane 4-5mm 4-5mm
Lens L 60-240 60-240
focus rane 90-300mm 90-300mm
Video Res. Max 2880*2160 UHD 24fps 2880*2160 UHD 24fps
Video Format MP4 MP4
Frame Rate Max 120 fps 120 fps
Photo Res. 5600*2400(with interpolation ) 5600*2400(with interpolation)
Photo Format JPG JPG
Screen Size 7 inch 10 inch
HDMI Output √(support duel-screen display) √(only HDMI monitor displays)
PC Output
Bracket Size 20*18*30cm
Package Include Microscope, Metal stand, 3 Lenses(A,D&L), Slide holder, Remote, Dimmer cable, HDMI cable, USB cable, Slides kit, Tweezers, Bug box
